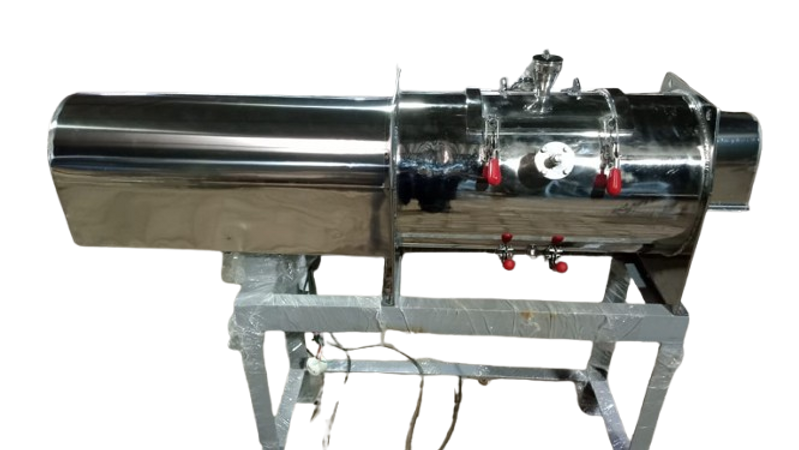

**Plough Shear Mixer Pilot Plant Trials – 50L Capacity**

We offer a fully operational pilot blending facility for evaluating dry mixing performance of CPVC resin, detergent powder, agrochemicals, polymer powders, stabilizers, and specialty materials.

**Facility Capabilities:**
- Mixer Type: Plough Shear (50 liters, SS 316 L MOC)
- Mixer Features:
• Variable RPM (Ploughs: 10–210 RPM)
• Optional chopper (1500 RPM)
• Easy top loading and bottom discharge
- Batch Size: 5–20 kg per trial (adjustable fill %)
- Process Monitoring:
• Motor current (no-load, startup, steady)
• Product temperature (before/after blending)
- Trial Output:
• Sieve analysis report
• Visual homogeneity assessment
• Blending efficiency recommendations
• Scale-up guidance to 250 kg–5 tonne mixers

**Industries Served:**
✔️ Soap and Detergent manufacturers
✔️ Fire Extinguishing Powder manufacturers
✔️ Pesticides and Agrochemical manufacturers

✔️ Fly Ash Treatment and Cement manufacturers
✔️ Specialty chemicals & dry powder blends

✔️ CPVC & PVC compounders

Reach out to us to schedule your trial or request a brochure today.
